JAY-10 10-Liter Oxygen Concentrator

OTHER

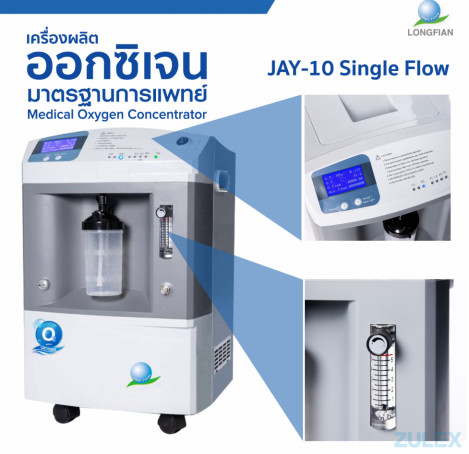

The unit is designed for easy mobility with four wheels, an LCD screen displaying operating information, and a built-in alarm system to indicate the machine's status.

Product Features

  • Outer casing made of durable ABS plastic

  • Equipped with four wheels for easy mobility

  • Power Supply: 220V, 50Hz

  • Maximum Power Consumption: 880W

  • Dimensions: 365 × 375 × 600 mm (L × W × H)

  • Net Weight: 27 kg

  • Top compartment with an opening and closing lid for convenient storage and transportation of accessories

  • LCD (Liquid Crystal Display) showing time in hours and minutes

  • UP / DOWN buttons for timer settings and screen brightness adjustment

Technical Specifications

  • Oxygen Flow Rate: 0–10 L/min

  • Oxygen Concentration: 93% (±3%)

  • Operating Noise Level: ≤50 dB

  • Air Pressure: 0.04–0.08 MPa (40–80 kPa)

Status Indicators and Alarm System

The unit features four LED status indicators to display operating conditions and alert users to certain conditions.

  • Power Indicator: Green light indicates normal operation

  • Power Failure Alarm: Red light indicates a power failure

  • Temperature Alarm: Red light indicates a temperature-related alarm

Standards and Certifications

  • ISO 13485

  • Class II

  • IP21

  • CE

  • IEC

Product Information

  • Brand: DiStar

  • Model: JAY10

  • Product Type: Oxygen Concentrator

  • Power Supply: 220V, 50Hz

  • Maximum Power Consumption: 880W

  • Dimensions: 365 × 375 × 600 mm

  • Net Weight: 27 kg

Important Note

Please read the user manual and follow the manufacturer's instructions before operating the device. If the oxygen concentrator is used for medical treatment or if the user has specific oxygen therapy requirements, it should be operated according to the guidance of a physician or qualified healthcare professional.
